Migrating from Helm chart nginx-ingress to ingress-nginx

For the last four years, anyone wanting to deploy the Ingress NGINX Controller for Kubernetes would find its official Helm chart nginx-ingress in the stable repository maintained by the Helm project.

Those days are over. And not just for Ingress NGINX Controller, the most popular Ingress Controller used as a reverse proxy and load balancer, but for all open-source K8s apps.

With the advent of Helm 3, the Helm project is deprecating the stable repositories. As of November 2019, no new charts were to be accepted to stable as chart owners transition to individual repos. That transition period is now over stable repos have been delisted from Helm Hub, and will be officially obsolete this coming November.

What does this mean for installers and maintainers of Ingress NGINX Controller deployments? To start, The Ingress NGINX Controller project now maintains a new ingress-nginx Helm chart in the GitHub repositories for Kubernetes. Anyone installing or updating a deployment of Ingress NGINX Controller should now use the chart from this repo.

Even though the new chart currently deploys the same version of the Ingress NGINX Controller app, it isn't identical to the chart in stable. This requires some adjustment when updating an Ingress NGINX Controller installation in place with the new chart.

Let's take a look at what's involved, and also how JFrog ChartCenter can help you transition.

A Central Helm Repository

The stable set of Helm charts meant that official charts for many popular Kubernetes apps could always be found in a central repository. You would simply add the stable repo to the Helm client:

$ helm repo add stable https://kubernetes-charts.storage.googleapis.com/

From this single stable repository, you could confidently deploy nginx-ingressusing the latest author-approved Helm chart.

As the stable repository is nearly obsolete, it is no longer available as a one stop source for known-good Helm charts. Ingress NGINX Controller now instructs you to add ingress-nginx individually to the Helm client:

$ helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx

Without a central repository, you need to perform a separate helm repo add every time you need to maintain a different K8s app.

Is there a better way?

Ingress NGINX Controller in ChartCenter

ChartCenter is a free Helm chart central repository that was built to help the Helm community find immutable, secure, and reliable charts and have a single source of truth to proxy all the charts from one location. It can be used as one central Helm repository from the Helm client, so you do not have to add many public Helm repositories, but use just one instead.

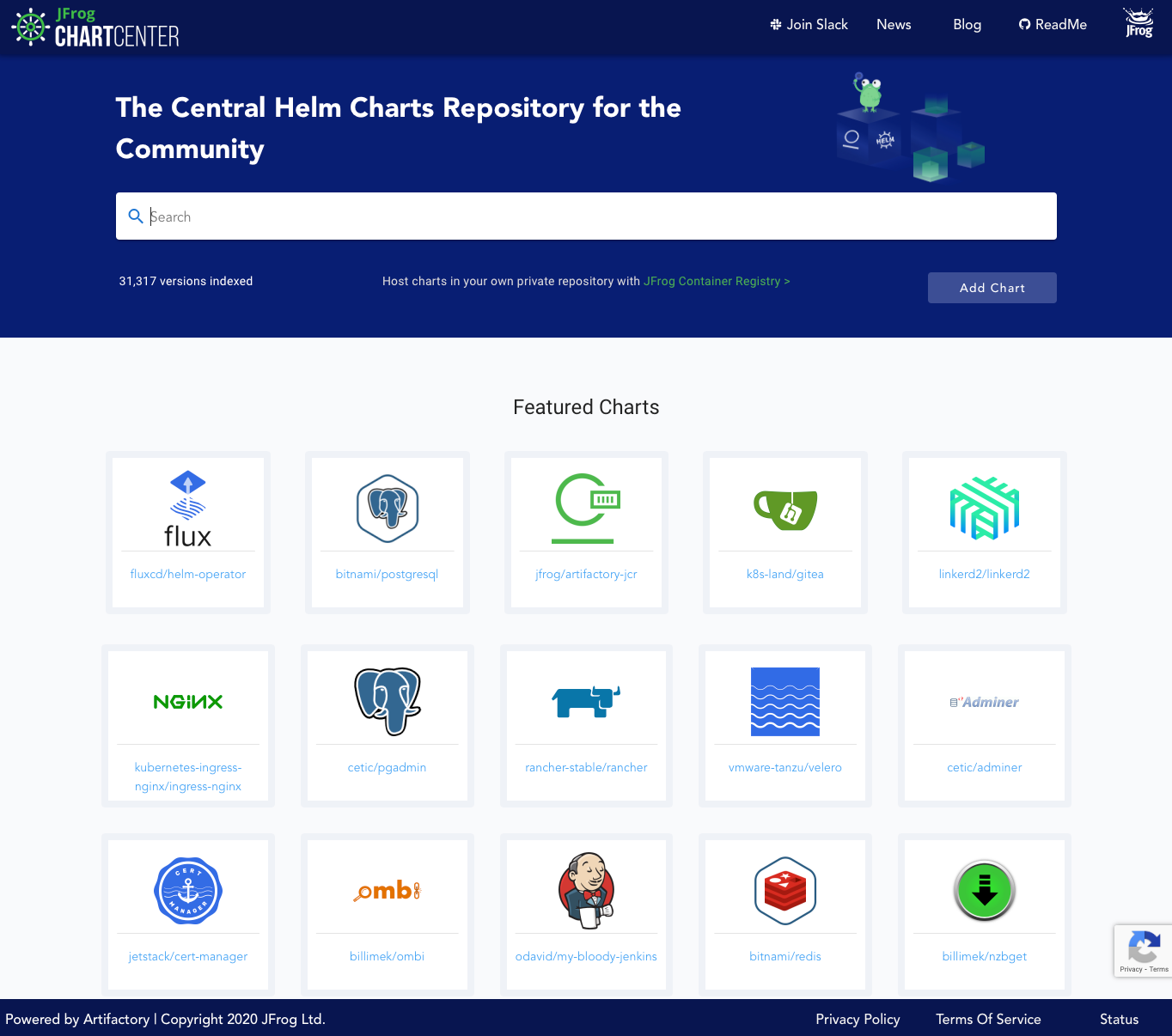

Through ChartCenter, over 30,000 versioned Helm charts are available, and many popular app charts including the Ingress NGINX Controller are featured on its home page so you can conveniently locate them.

chartcenter

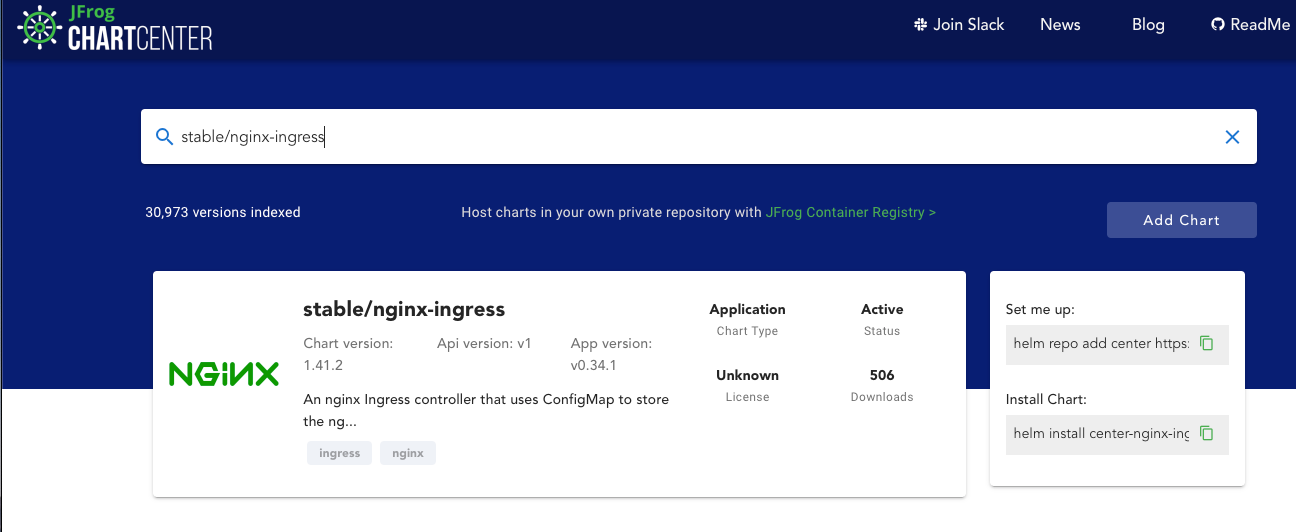

Through ChartCenter’s search, we can find the stable chart nginx-ingress:

nginx-ingress

We can also locate the current chart ingress-nginx in ChartCenter:

nginx-ingress

Using ChartCenter

Once we add ChartCenter to our Helm client, we can use it as a central repository for all our Helm charts, including both the Ingress NGINX Controller repositories we will be using in our demonstration.

Step 1: Add ChartCenter as your Helm repository

Set your Helm client to use the ChartCenter repository as your single central location to consume charts from:

$ helm repo add center https://repo.chartcenter.io
$ helm repo update

Step 2: Using ChartCenter as a repository

Now let’s check for the nginx-ingress and ingress-nginx charts from the helm client:

$ helm search repo center/stable/nginx-ingress
$ helm search repo center/stable/nginx-ingress
NAME                       	CHART VERSION	APP VERSION	DESCRIPTION
center/stable/nginx-ingress	1.41.2       	v0.34.1    	An nginx Ingress controller that uses ConfigMap...

$ helm search repo center/kubernetes-ingress-nginx/ingress-nginx
NAME                                         	CHART VERSION	APP VERSION	DESCRIPTION
center/kubernetes-ingress-nginx/ingress-nginx	2.11.2       	0.34.1     	Ingress controller for Kubernetes using NGINX a...

Nice, we see the same version of the charts as we did in ChartCenter UI.

And here, you’re able to see how much easier it is to use one central Helm repository for charts from different Helm repositories.

Installing nginx-ingress Helm chart

To test the upgrade first we need to install a nginx-ingress chart. I’m going to use a small shell script nginx-ingress.sh which creates an override values file, and then installs `nginx-ingress.

The nginx-ingress.sh has a chart name and version, and a static IP for the Load Balancer:

#!/bin/bash

CHART_NAME="center/stable/nginx-ingress"
CHART_VERSION="1.41.2"
RELEASE=nginx-ingress
NAMESPACE=nginx-ingress
VALUES_FILE=nginx-ingress.yaml
LB_STATIC_IP=35.197.192.35

generateValues() {
   cat << EOF > "${VALUES_FILE}"
# Override values for nginx-ingress

controller:
 ## Use host ports 80 and 443
 daemonset:
   useHostPort: true
 kind: DaemonSet
 service:
   ## Set static IP for LoadBalancer
   loadBalancerIP: ${LB_STATIC_IP}
   externalTrafficPolicy: Local
 stats:
   enabled: true
 metrics:
   enabled: true
EOF
}

generateValues
kubectl create ns nginx-ingress || true
echo
helm upgrade --install ${RELEASE} -n ${NAMESPACE} ${CHART_NAME} --version ${CHART_VERSION} -f ${VALUES_FILE}
echo
kubectl -n ${NAMESPACE} get all

Let’s run nginx-ingress.sh to install nginx-ingress:

$ ./nginx-ingress.sh
namespace/nginx-ingress created

Release "nginx-ingress" does not exist. Installing it now.
NAME: nginx-ingress
LAST DEPLOYED: Mon Aug 10 17:27:13 2020
NAMESPACE: nginx-ingress
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
The nginx-ingress controller has been installed.
It may take a few minutes for the LoadBalancer IP to be available.
You can watch the status by running 'kubectl --namespace nginx-ingress get services -o wide -w nginx-ingress-controller'

An example Ingress that makes use of the controller:

  apiVersion: extensions/v1beta1
  kind: Ingress
  metadata:
    annotations:
      kubernetes.io/ingress.class: nginx
    name: example
    namespace: foo
  spec:
    rules:
      - host: www.example.com
        http:
          paths:
            - backend:
                serviceName: exampleService
                servicePort: 80
              path: /
    # This section is only required if TLS is to be enabled for the Ingress
    tls:
        - hosts:
            - www.example.com
          secretName: example-tls

If TLS is enabled for the Ingress, a Secret containing the certificate and key must also be provided:

  apiVersion: v1
  kind: Secret
  metadata:
    name: example-tls
    namespace: foo
  data:
    tls.crt: <base64 encoded cert>
    tls.key: <base64 encoded key>
  type: kubernetes.io/tls

NAME                                                 READY   STATUS              RESTARTS   AGE
pod/nginx-ingress-controller-rrsl9                   0/1     ContainerCreating   0          1s
pod/nginx-ingress-default-backend-5b967cf596-wrrfl   0/1     ContainerCreating   0          1s

NAME                                       TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
service/nginx-ingress-controller           LoadBalancer   10.242.2.213    <pending>     80:30643/TCP,443:31622/TCP   2s
service/nginx-ingress-controller-metrics   ClusterIP      10.242.10.112   <none>        9913/TCP                     2s
service/nginx-ingress-default-backend      ClusterIP      10.242.11.172   <none>        80/TCP                       2s

NAME                                      DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR   AGE
daemonset.apps/nginx-ingress-controller   1         1         0       1            0           <none>          3s

NAME                                            READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/nginx-ingress-default-backend   0/1     1            0           2s

NAME                                                       DESIRED   CURRENT   READY   AGE
replicaset.apps/nginx-ingress-default-backend-5b967cf596   1         1         0       2s

And let’s check for pods and service:

 $ kubectl -n nginx-ingress get pods
NAME                                             READY   STATUS    RESTARTS   AGE
nginx-ingress-controller-rrsl9                   1/1     Running   0          78s
nginx-ingress-default-backend-5b967cf596-wrrfl   1/1     Running   0          78s

$ kubectl -n nginx-ingress get svc
NAME                               TYPE           CLUSTER-IP      EXTERNAL-IP     PORT(S)                      AGE
nginx-ingress-controller           LoadBalancer   10.242.2.213    35.197.192.35   80:30643/TCP,443:31622/TCP   89s
nginx-ingress-controller-metrics   ClusterIP      10.242.10.112   <none>          9913/TCP                     89s
nginx-ingress-default-backend      ClusterIP      10.242.11.172   <none>          80/TCP                       89s

Nice, NGINX Ingress Controller pod is up, and it’s service got assigned external IP by the Load Balancer.

Ok, we got the nginx-ingress chart successfully installed, let’s move on to upgrading it.

Upgrading to ingress-nginx Helm chart

Let’s try to upgrade NGINX Ingress Controller using the more current chart..

Again we are going to use a shell script this time with the different name ingress-nginx.sh.
The ingress-nginx.sh has a different chart name and version, and the same Helm release name and the same static IP for the Load Balancer.

#!/bin/bash

CHART_NAME="center/kubernetes-ingress-nginx/ingress-nginx"
CHART_VERSION="2.11.1"
RELEASE=nginx-ingress
NAMESPACE=nginx-ingress
VALUES_FILE=ingress-nginx.yaml
LB_STATIC_IP=35.197.192.35

generateValues() {
   cat << EOF > "${VALUES_FILE}"
# Override values for ingress-nginx

controller:
 ## Use host ports 80 and 443
 hostPort:
   enabled: true
 kind: DaemonSet
 service:
   ## Set static IP for LoadBalancer
   loadBalancerIP: ${LB_STATIC_IP}
   externalTrafficPolicy: Local
 stats:
   enabled: true
 metrics:
   enabled: true
 admissionWebhooks:
   enabled: false
defaultBackend:
 enabled: true
EOF
}

generateValues
echo
helm upgrade --install ${RELEASE} -n ${NAMESPACE} ${CHART_NAME} --version ${CHART_VERSION} -f ${VALUES_FILE}
echo
kubectl -n ${NAMESPACE} get all

The ingress-nginx.sh has some differences from the nginx-ingress.sh one, as some values got changed:

controller:
 ## Use host ports 80 and 443
 daemonset:
   useHostPort: true

To:

controller:
 ## Use host ports 80 and 443
 hostPort:
   enabled: true
 kind: DaemonSet

And some extra ones were added:

 admissionWebhooks:
   enabled: false
defaultBackend:
 enabled: true

In this upgrade scenario we are not using admissionWebhooks so we disable it, and we enable defaultBackend as in nginx-ingress chart it is enabled by default. And of course you can tweak the values as suits your needs.

Let’s run ingress-nginx.sh to upgrade nginx-ingress:

Release "nginx-ingress" has been upgraded. Happy Helming!
NAME: nginx-ingress
LAST DEPLOYED: Mon Aug 10 18:00:31 2020
NAMESPACE: nginx-ingress
STATUS: deployed
REVISION: 2
TEST SUITE: None
NOTES:
The ingress-nginx controller has been installed.
It may take a few minutes for the LoadBalancer IP to be available.
You can watch the status by running 'kubectl --namespace nginx-ingress get services -o wide -w nginx-ingress-ingress-nginx-controller'

An example Ingress that makes use of the controller:

  apiVersion: networking.k8s.io/v1beta1
  kind: Ingress
  metadata:
    annotations:
      kubernetes.io/ingress.class: nginx
    name: example
    namespace: foo
  spec:
    rules:
      - host: www.example.com
        http:
          paths:
            - backend:
                serviceName: exampleService
                servicePort: 80
              path: /
    # This section is only required if TLS is to be enabled for the Ingress
    tls:
        - hosts:
            - www.example.com
          secretName: example-tls

If TLS is enabled for the Ingress, a Secret containing the certificate and key must also be provided:

  apiVersion: v1
  kind: Secret
  metadata:
    name: example-tls
    namespace: foo
  data:
    tls.crt: <base64 encoded cert>
    tls.key: <base64 encoded key>
  type: kubernetes.io/tls

NAME                                                              READY   STATUS        RESTARTS   AGE
pod/nginx-ingress-controller-rrsl9                                1/1     Terminating   0          33m
pod/nginx-ingress-default-backend-5b967cf596-wrrfl                0/1     Terminating   0          33m
pod/nginx-ingress-ingress-nginx-controller-f9ztr                  0/1     Pending       0          5s
pod/nginx-ingress-ingress-nginx-defaultbackend-845f7cfd46-56grw   1/1     Running       0          5s

NAME                                                     TYPE           CLUSTER-IP      EXTERNAL-IP     PORT(S)                      AGE
service/nginx-ingress-controller                         LoadBalancer   10.242.2.213    35.197.192.35   80:30643/TCP,443:31622/TCP   33m
service/nginx-ingress-ingress-nginx-controller           LoadBalancer   10.242.13.184   <pending>       80:30601/TCP,443:30644/TCP   6s
service/nginx-ingress-ingress-nginx-controller-metrics   ClusterIP      10.242.12.190   <none>          9913/TCP                     6s
service/nginx-ingress-ingress-nginx-defaultbackend       ClusterIP      10.242.11.112   <none>          80/TCP                       5s

NAME                                                    DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR   AGE
daemonset.apps/nginx-ingress-ingress-nginx-controller   1         1         0       1            0           <none>          6s

NAME                                                         READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/nginx-ingress-ingress-nginx-defaultbackend   1/1     1            1           6s

NAME                                                                    DESIRED   CURRENT   READY   AGE
replicaset.apps/nginx-ingress-ingress-nginx-defaultbackend-845f7cfd46   1         1         1       6s

And let’s check the pods and service:

 $ kubectl -n nginx-ingress get pods
NAME                                                          READY   STATUS    RESTARTS   AGE
nginx-ingress-ingress-nginx-controller-f9ztr                  0/1     Running   0          34s
nginx-ingress-ingress-nginx-defaultbackend-845f7cfd46-56grw   1/1     Running   0          34s

$ kubectl -n nginx-ingress get svc
NAME                                             TYPE           CLUSTER-IP      EXTERNAL-IP     PORT(S)                      AGE
nginx-ingress-controller                         LoadBalancer   10.242.2.213    35.197.192.35   80:30643/TCP,443:31622/TCP   34m
nginx-ingress-ingress-nginx-controller           LoadBalancer   10.242.13.184   <pending>       80:30601/TCP,443:30644/TCP   40s
nginx-ingress-ingress-nginx-controller-metrics   ClusterIP      10.242.12.190   <none>          9913/TCP                     40s
nginx-ingress-ingress-nginx-defaultbackend       ClusterIP      10.242.11.112   <none>          80/TCP                       39s

You see there the pods are getting updated and we see two services, one old one new.
Let’s run kubectl -n nginx-ingress get svc again:

$ kubectl -n nginx-ingress get svc
NAME                                             TYPE           CLUSTER-IP      EXTERNAL-IP     PORT(S)                      AGE
nginx-ingress-ingress-nginx-controller           LoadBalancer   10.242.13.184   35.197.192.35   80:30601/TCP,443:30644/TCP   3m26s
nginx-ingress-ingress-nginx-controller-metrics   ClusterIP      10.242.12.190   <none>          9913/TCP                     3m26s
nginx-ingress-ingress-nginx-defaultbackend       ClusterIP      10.242.11.112   <none>          80/TCP                       3m25s

Voila, the old service was deleted and the new one created just by running helm upgrade and not using any other magic with kubectl. Of course replacing the service some downtime is expected as the new load balancer needs to be created for the new service.

Thanks, and Good Luck

Pretty easy, right? Big thanks to the Ingress NGINX Controller chart’s maintainers for such a seamless upgrade between two different charts!

With good fortune, the transition to individual chart repos for your other K8s apps will be equally smooth. Using ChartCenter as your central Helm chart repository can help get those updates going.

Happy Ingressing
